Adjustable Machine Height Monitor



SMH – 4 or 8 / AMH – 4 or 8

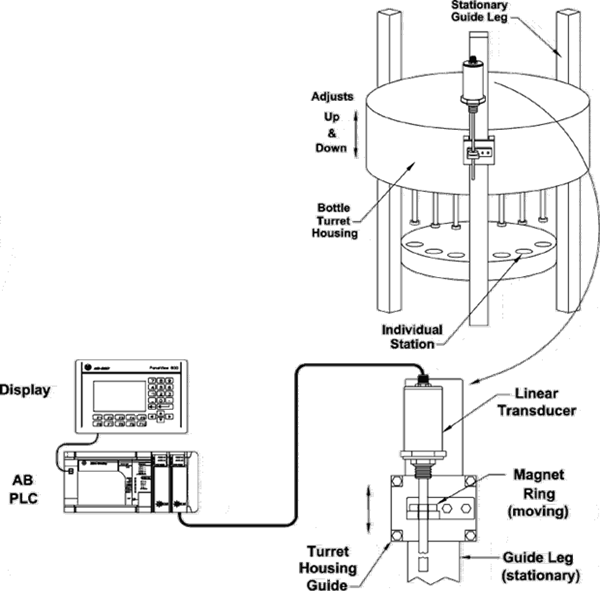

Helm series SMH and AMH Adjustable Machine Height Monitors are based on Allen Bradley PLC controllers, to accurately monitor and control adjustable motor driven machine height. Precision linear transducers are mounted on the machine, to measure the adjustable height within .005″ accuracy. The height value is displayed, with the ability to store and recall target height settings for multiple jobs. Control output relays interface to the machine height adjustment motors, to initiate automatic and correct height adjustments for the desired job. “S” Stand-Alone and “A” PLC Integrated versions are available, in both 4 and 8 channel packages. The units are simple to install and operate, and provide great time savings over manual methods when job changeover for different products is required.

Possible Applications

Filling Equipment, Bottle Labeling Machines, Bottle Cappers, Heat Tunnels, Sealing Equipment, Can Labeling Machines, Case Packers

Specifications
Transducer Input Voltage: 7-30 VDC
Transducer Current: 40 ma @24 VDC
Transducer Output: Analog, 0-10VDC
Measurement Repeatability: ±.001″
Measurement Accuracy: ±.005″
Temperature Range: 32° to 140°F



“Stand-Alone” Adjustable Machine Height Monitor↑Top↑

Stand Alone Adjustable Machine Height Monitor Picture

SMH – 4 (4 CH)
SMH – 8 (8 CH)

“Stand-Alone” Adjustable Machine Height Monitor for Labeling, Filling & Assorted Packaging Line Machines

Standard Unit Features:

Unit Options:

  • Remote Job Activation feature, to remotely activate a new job with the proper machine height monitor settings, from a Panel View operator interface at the main machine control

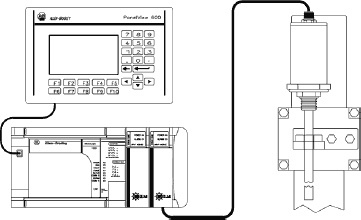

“PLC-Integrated” Adjustable Machine Height Monitor↑Top↑

PLC Integrated Adjustable Machine Height Monitor Picture

AMH – 4 (4 CH)
AMH – 8 (8 CH)

“PLC-Integrated” Adjustable Machine Height Monitor for Labeling, Filling & Assorted Packaging Line Machines

Standard Unit Features:

Note: Customer is to provide to Helm Instrument the existing PLC control program & the Panel View display program, for program work by Helm. Confidential nondisclosure agreements can be signed by Helm as needed.

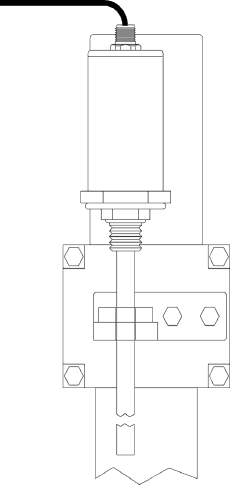

Machine Height Monitor Linear Displacement Transducer↑Top↑

Machine Height Monitor Linear Displacement Transducer Picture

SMH – 4 or 8
AMH – 4 or 8

Standard Transducer Features:

  • Standard Duty Transducer Model H-LDT-SD-XXXX (“XXXX” designates active sensing length in inches; “0120” is 12.0″ length)
  • Sensing lengths from 12.0″ to 60.0″, in .1″ increments
  • For mounting on motorized adjustable machine support legs, to provide a calibrated output signal for machine height
  • Can be mounted for vertical (height) or horizontal machine adjustment
  • 0-10 VDC Analog output signal
  • Rugged construction for industrial applications
  • Stainless steel sensing tube
  • Electronics enclosed in aluminum housing with O-Ring seals, with IP67 rating for dust and water protection
  • Hard wired 30’ cable with cordgrip fitting at cable exit (Note: longer cable lengths available upon request)
  • Sensor magnet ring
  • Adjustable steel mounting brackets for sensor unit (stationary machine section) and for magnet ring (moving adjustable machine section)

Transducer Options:

  • Heavy Duty stainless steel transducer (Model H-LDT-HD-XXXX), with stainless steel sensing tube & stainless steel electronics enclosure with O-Ring seals, for washdown protection from caustic cleaning agents
  • Stainless steel mounting brackets for sensor unit and magnet ring
  • Long length cable over 30’ (Note: specify desired length)
