Compass PLM-4 Portable Calibration Instrument

Compass PLM-4 Portable Calibration Instrument

Calibrating Instruments in the Palm of your Hand

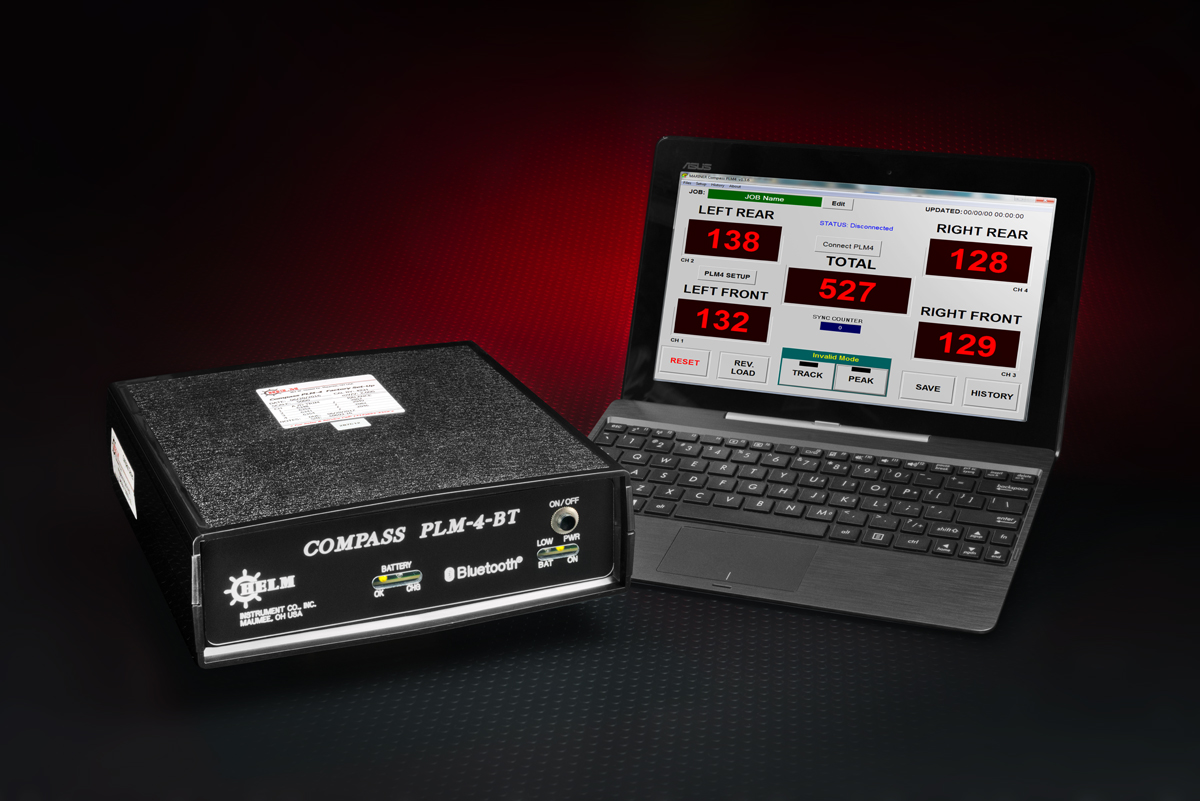

PLM-4-BT 1500

  • The compact battery operated Compass eliminates bulky strain gage calibration instruments and utilizes a conventional palm pilot for load display
  • Performs accurate press calibrations using the palm pilot, Compass PLM-4 unit and most calibration load cells
  • Performs fast die set-ups using the palm pilot, Compass PLM-4 unit and Helm calibrated force transducers mounted to the machine or tooling
  • Performs continuous press load monitoring using the palm pilot, Compass PLM-4 unit and Helm calibrated force transducers
  • Verifies die cast and injection molding machine clamp force tonnage, platen squareness and parallelism using the palm pilot, Compass PLM-4 unit and Helm model SB squaring block
  • Monitors tie bar strain of die cast and injection molding machines using the palm pilot, Compass PLM-4 unit and Helm tie bar sensors
  • Load monitoring and process analysis capabilities for a wide variety of machines used in the metalforming industry
Compass PLM-4 Features ↑Top↑

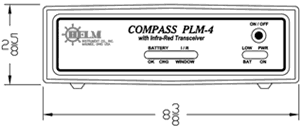

Picture of the Compass PLM-4 Front Dimensions

  • Accepts up to four channel strain gage inputs 350 or 750ohm full bridge
  • Displays Peak (dynamic) or Track (static) force values
  • Display load signatures for machine diagnostics
  • Weighs less than 5lbs
  • Rechargable Lithium-ion battery
  • Scanning distance up to 5 feet
