Weigh Module Applications

For the Allen-Bradley SLC-500 (1746), ControlLogix (1756), MicroLogix/CompactLogix (1769), Point I/O (1734), and Micro850 (2085) PLC

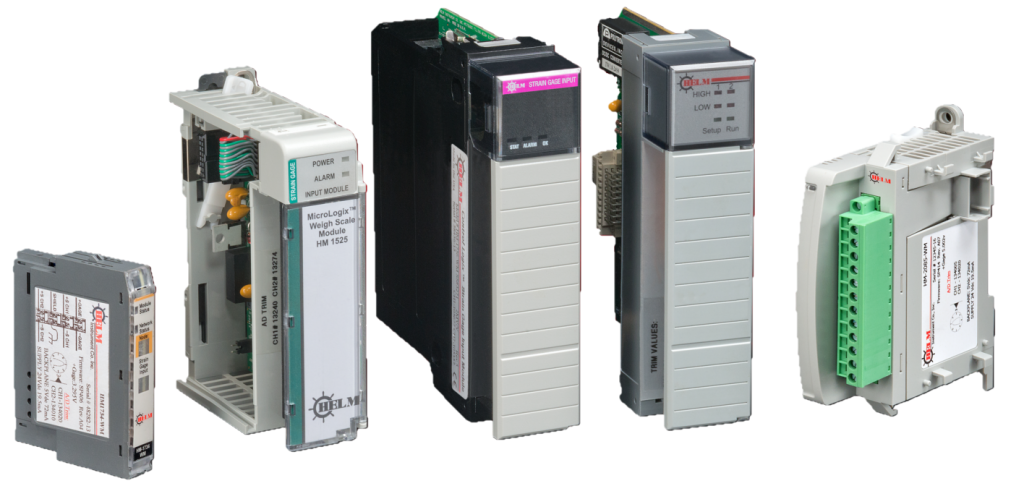

5 units transparent

Designed for static weighing applications Helm weigh modules provide 2 independent channels of weigh scale measurement. Each weigh module can accept two 350 ohm strain gages or up to four 700 ohm strain gages and compatable with most industry standard load cells. The sensors may be wired directly into the module, simplifying the installation. With a self-contained power source, no external amplification is required. Calibration settings are programmable. Helm weigh modules are availablefor 1734(Point I/O, 1746(SLC 500), 1756(Controllogix) and 1769(Micro/Compac) series of programmable controllers.

Weigh Module Features ↑Top↑
Weigh Module Specifications ↑Top↑
Platform Model User Manual
1746 SLC 500 IMG_0720HM-604-WM  pdf
1756 ControlLogix ANGLE 6HM-1756-WM  pdf
1769 CompactLogix IMG_0738HM-1525-WM  pdf
1734 Point I/O IMG_0707HM-1734-WM  pdf
2085 Micro850 hm2085wmsmHM-2085-WM pdf
