KTM LoadGard



Get Quote | Manual | Ordering Information



View, store, and recall tonnage signatures, tracking alarms, and peak history on a touch screen display

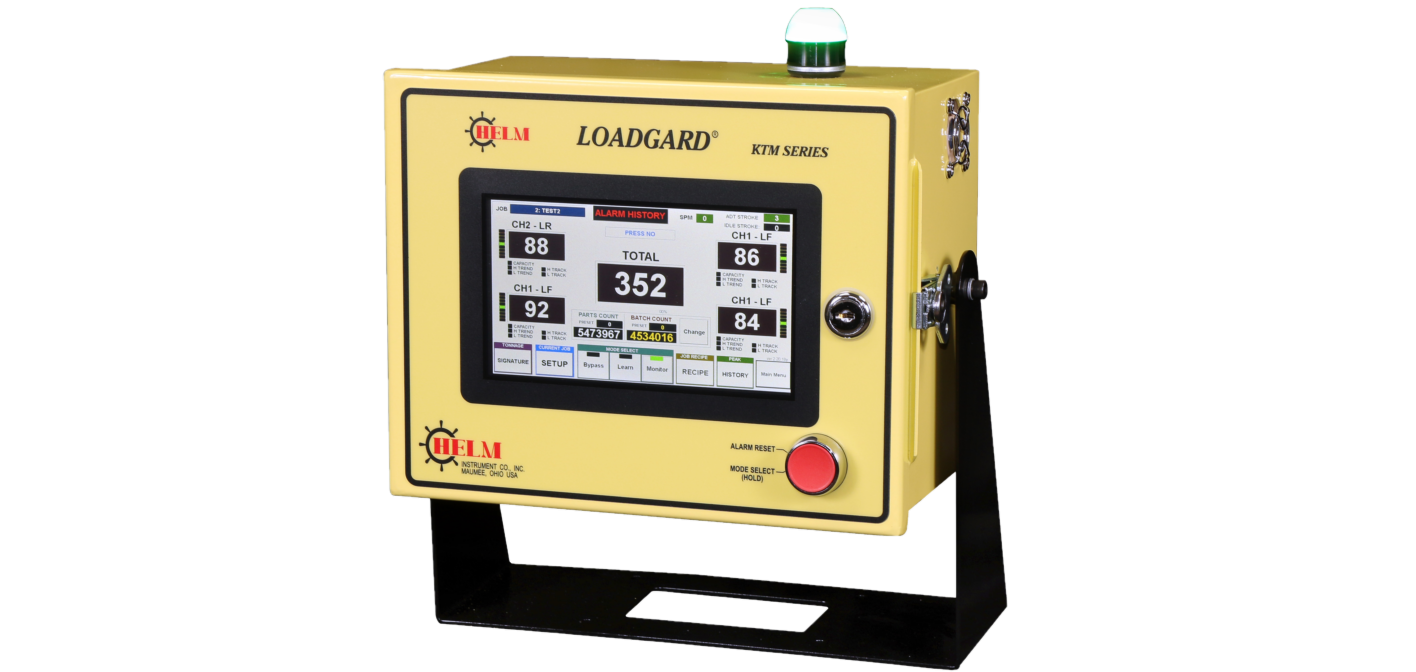

KTM TransparentKTM LoadGard is available available with 2-4 channel. Key features include: signature analysis, Full color touch screen display, continuous tonnage monitoring, built in press overload alarms, automatic high and low part quality alarms, part and batch counters, strokes per minute display, and recipe storage for up to 1,000 jobs.

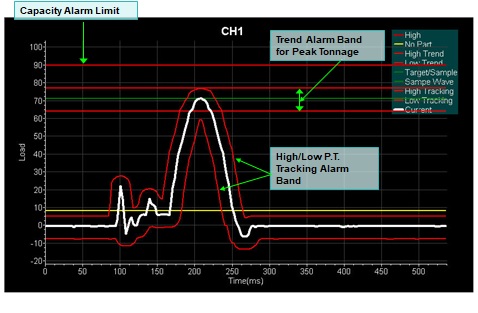

Sophisticated Tonnage Alarm Limits With On-Screen Signature Analysis

KTM Signature















Other Key Features:

  • Color touch screen display
  • 2-4 channels
  • Signature analysis
  • Peak history
  • Job storage
  • Tracking alarms
  • Alarm history
  • SPM display
  • Automatic Zero Balance (Auto-Zero)
  • Built-in ethernet connectivity

Specifications

Power Requirements 100-240 VAC @0.125 Amp
Input contacts
 2 Solid state: 10-30 VDC
Output contacts 2 Relay: 10-30 VDC or 100~240AC
Cam/Prox/PLC input 24 VDC
Response time Up to 10,000 samples per channel
Operating speed 6-700 Strokes Per Minute
Resolution 16 Bit
Sensor type Strain gauge 175-700 Ohm. Piezo option
Display type
 7″ touch screen LCD

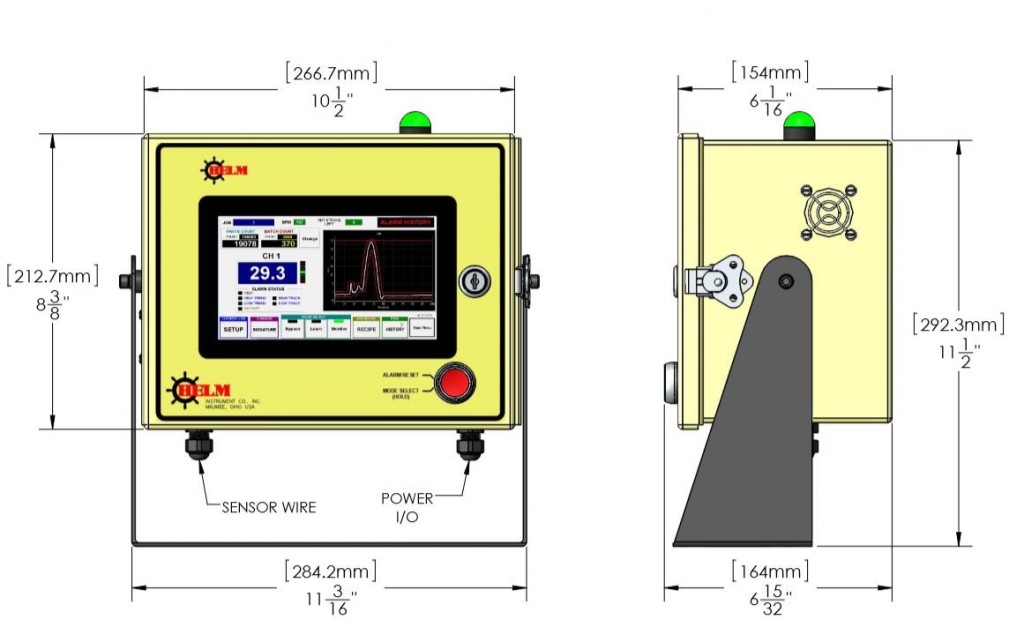

KTM Loadgard Dimensions
