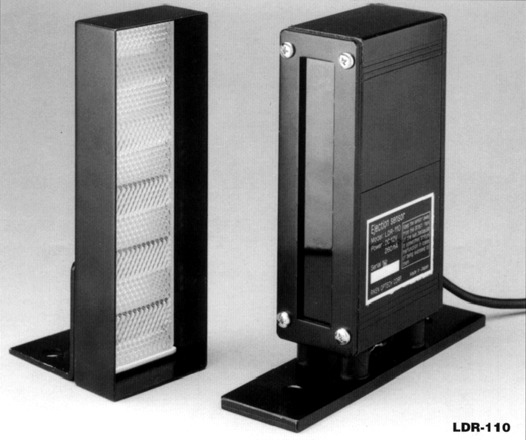

Part Ejection Light Curtain

Part Ejection Light Curtain

Get Quote
Ordering Information

State of the Art Fail Safe Circuitry

Features

  • Projector-receiver assembly
  • State of the art fail safe circuitry
  • Operates on 12 volts DC
  • Detects metallic or non-metallic parts
  • Interfaces with most machine controls
  • Easy to install, no programming required
  • Detects parts as small as .125 inches (3.175mm)

Applications

  • Punch Presses
  • High speed stamping machines
  • Assembly operations
  • Forming and fabricating equipment

Specifications

Power Requirements 12 volts DC ± 5%
Current 260mA maximum
Light emitting wavelength 950nm
Light receiving wavelength 950nm
Output time 100ms open collector
Effective sensing distance 150mm to 500mm
Minimum objects sensitivity Level 6 – 3mm diameter
Level 1 – 20mm diameter
