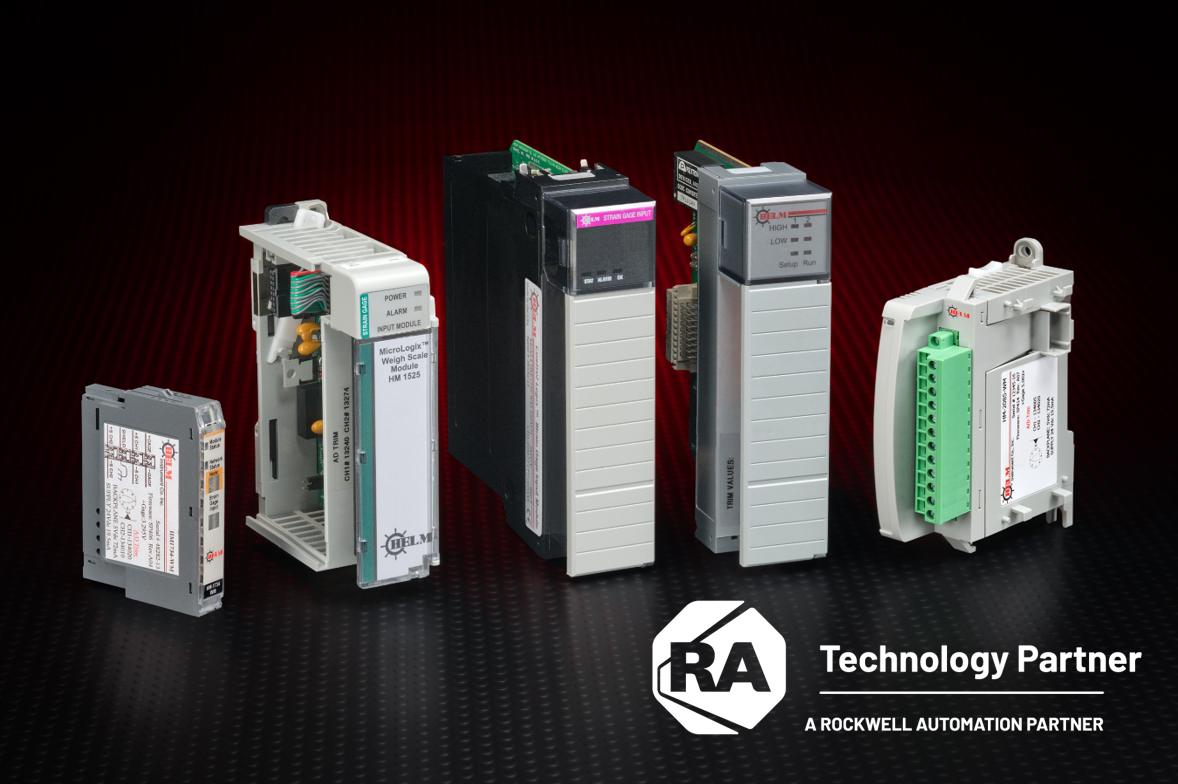

For the Allen-Bradley SLC-500 (1746), ControlLogix (1756), MicroLogix/CompactLogix (1769), Point I/O (1734), and Micro850 (2085) PLC
The Helm SGI modules are specifically designed to fit dynamic force measurement applications. Two separate channels of signal conditioning on each module eliminates the cost of adding amplifiers or analog input modules. Parameters can be set from processor memory locations for setting upper and lower control limits. The modules accept a variety of Helm strain gage force sensors and load cells.
| Applications | Standard Features | Specifications |
| Metal Stamping | Data Acquisition | 12 bit resolution |
| Pharmaceutical | Direct connection to Allen-Bradley Clutch Brake System | Strain gage input 350 or 700 ohm |
| Assembly Machines | Position data feedback from Helm resolver modules | Built-in gage excitation |
| Riveting | Signature Analysis | Single slot, two channel input |
| Die Cast | Internal diagnostics | |
| Compaction |
Process variables transferred to the data table include:
out of tolerance condition | sample and target values | time based machine cycles | tolerance and control limit settings | part and batch counts
out of tolerance condition | sample and target values | time based machine cycles | tolerance and control limit settings | part and batch counts
| Type of Input | Strain Gage (350 ohm, 700 ohm) | |
| Input Impedance | 1K | |
| Display Resolution | Up to 0.1% of full scale | |
| Overall Module Accuracy | 1% of full scale | |
| Module Update Time | HM-604 | 140 micro seconds |
| HM-1520 | 200 micro seconds | |
| Backplane current | HM-604 | 220MA@5VDC, 173MA@24VDC |
| HM-1520 | 150MA@5VDC, 65MA@24VDC | |
| Operating Temperature | 0°-60°C (32°-140°F) |
 |
 |
 |
 |
| Model T-2640 Die Cast/Injection Molding |
Model SG-573 In-Die/Station Monitoring |
Model HT-400 Stamping/Metalforming |
Contact Helm for a complete catalog on force transducers and load cells. |
| Application | 1746 | 1769 | 1756 |
| Standard Peak Monitoring | HM-604-PLM | HM-1520-PLM | HM-1756-PLM |
| Thru-the-Stroke Monitoring with Resolver Interface | HM-604-TSM | N/A | HM-1756-TSM |
| Die Cast Machines | HM-604-DC | HM-1520-DC | HM-1756-DC |
| Weighing Applications |
